基于STEP FPGA的SPI RGB液晶屏顯示驅動

行業動態 | 2023-12-06 09:50:59 | 作者

硬件說明

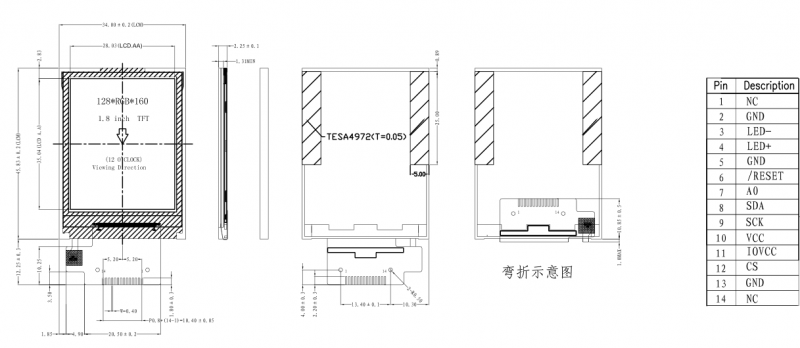

我們的STEP-BaseBoard底板上集成了1.8寸彩色液晶屏TFT_LCD模塊，大家可以驅動LCD顯示文字、圖片或動態的波形。首先了解一下液晶屏模塊，相關資料下載：https://pan.baidu.com/s/1bp6AYsR

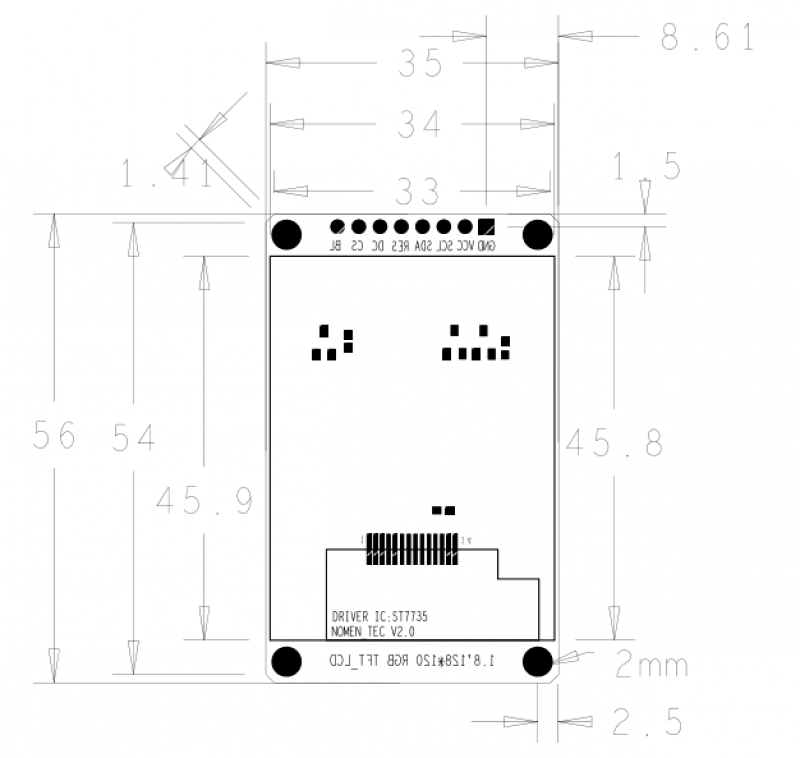

框圖如下：

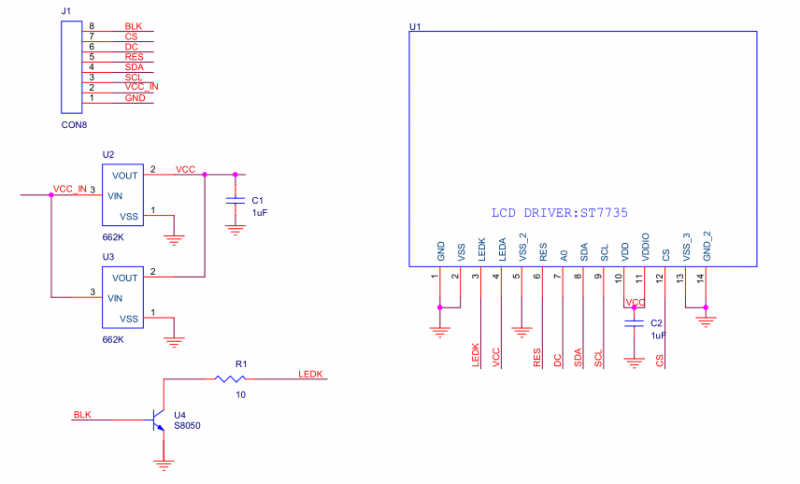

原理圖如下：

原理圖中的器件U1為液晶屏，液晶屏為1.8寸，128RGB160像素，串行總線（SPI），液晶屏集成了ST7735S的驅動器，處理器與ST7735S通信完成液晶屏的顯示控制

ST7735S為132RGBx162像素點262K控制器/驅動器，芯片可以直接跟外部處理器連接，支持串行SPI通信和8/9/16/18位并行通信（本液晶屏集成ST7735S時沒有留并行接口，所以只能使用串行通信），詳細參數請參考數據手冊：st7735s_datasheet.pdf

Verilog代碼

//-------------------------------------------------------------------- //>>>>>>>>>>>>>>>>>>>>>>>>>COPYRIGHTNOTICE<<<<<<<<<<<<<<<<<<<<<<<<< //-------------------------------------------------------------------- //Module:LCD_RGB // //Author:Step // //Description:DriveTFT_RGB_LCD_1.8todisplay // //-------------------------------------------------------------------- //CodeRevisionHistory: //-------------------------------------------------------------------- //Version:|Mod.Date:|ChangesMade: //V1.1|2016/10/30|Initialver //-------------------------------------------------------------------- moduleLCD_RGB#( parameterLCD_W=8'd132, //液晶屏像素寬度 parameterLCD_H=8'd162 //液晶屏像素高度)( input clk_in, //12MHz系統時鐘 input rst_n_in, //系統復位，低有效 output reg ram_lcd_clk_en, //RAM時鐘使能 output reg [7:0] ram_lcd_addr, //RAM地址信號 input [131:0] ram_lcd_data, //RAM數據信號 output reg lcd_rst_n_out, //LCD液晶屏復位 output reg lcd_bl_out, //LCD背光控制 output reg lcd_dc_out, //LCD數據指令控制 output reg lcd_clk_out, //LCD時鐘信號 output reg lcd_data_out //LCD數據信號 ); localparam INIT_DEPTH=16'd73;//LCD初始化的命令及數據的數量 localparam RED = 16'hf800; //紅色 localparam GREEN = 16'h07e0; //綠色 localparam BLUE = 16'h001f; //藍色 localparam BLACK = 16'h0000; //黑色 localparam WHITE = 16'hffff; //白色 localparam YELLOW = 16'hffe0; //黃色 localparam IDLE = 3'd0; localparam MAIN = 3'd1; localparam INIT = 3'd2; localparam SCAN = 3'd3; localparam WRITE = 3'd4; localparam DELAY = 3'd5; localparam LOW = 1'b0; localparam HIGH = 1'b1; //assign lcd_bl_out=HIGH; //backlightactivehighlevel wire [15:0] color_t = YELLOW; //頂層色為黃色 wire [15:0] color_b = BLACK; //背景色為黑色 reg [7:0] x_cnt; reg [7:0] y_cnt; reg [131:0] ram_data_r; reg [8:0] data_reg; // reg [8:0] reg_setxy [10:0]; reg [8:0] reg_init [72:0]; reg [2:0] cnt_main; reg [2:0] cnt_init; reg [2:0] cnt_scan; reg [5:0] cnt_write; reg [15:0] cnt_delay; reg [15:0] num_delay; reg [15:0] cnt; reg high_word; reg [2:0] state=IDLE; reg [2:0] state_back=IDLE; always@(posedgeclk_inornegedgerst_n_in)begin if(!rst_n_in)begin x_cnt<=8'd0; y_cnt<=8'd0; ram_lcd_clk_en<=1'b0; ram_lcd_addr<=8'd0; cnt_main<=3'd0; cnt_init<=3'd0; cnt_scan<=3'd0; cnt_write<=6'd0; cnt_delay<=16'd0; num_delay<=16'd50; cnt<=16'd0; high_word<=1'b1; lcd_bl_out<=LOW; state<=IDLE; state_back<=IDLE; endelsebegin case(state) IDLE:begin x_cnt<=8'd0; y_cnt<=8'd0; ram_lcd_clk_en<=1'b0; ram_lcd_addr<=8'd0; cnt_main<=3'd0; cnt_init<=3'd0; cnt_scan<=3'd0; cnt_write<=6'd0; cnt_delay<=16'd0; num_delay<=16'd50; cnt<=16'd0; high_word<=1'b1; state<=MAIN; state_back<=MAIN; end MAIN:begin case(cnt_main) //MAIN狀態 3'd0: beginstate<=INIT;cnt_main<=cnt_main+1'b1;end 3'd1: beginstate<=SCAN;cnt_main<=cnt_main+1'b1;end 3'd2: begincnt_main<=1'b1; end default:state<=IDLE; endcase end INIT:begin //初始化狀態 case(cnt_init) 3'd0: beginlcd_rst_n_out<=1'b0; cnt_init<=cnt_init+1'b1; end //復位有效 3'd1: beginnum_delay<=16'd3000; state<=DELAY; state_back<=INIT; cnt_init<=cnt_init+1'b1;end //延時 3'd2: beginlcd_rst_n_out<=1'b1; cnt_init<=cnt_init+1'b1; end //復位恢復 3'd3: beginnum_delay<=16'd3000; state<=DELAY; state_back<=INIT; cnt_init<=cnt_init+1'b1; end //延時 3'd4: begin if(cnt>=INIT_DEPTH)begin //當73條指令及數據發出后，配置完成 cnt<=16'd0; cnt_init<=cnt_init+1'b1; endelsebegin data_reg<=reg_init[cnt]; if(cnt==16'd0)num_delay<=16'd50000;//第一條指令需要較長延時 elsenum_delay<=16'd50; cnt<=cnt+16'd1; state<=WRITE; state_back<=INIT; end end 3'd5: begincnt_init<=1'b0; state<=MAIN;end //初始化完成，返回MAIN狀態 default:state<=IDLE; endcase end SCAN:begin //刷屏狀態，從RAM中讀取數據刷屏 case(cnt_scan) 3'd0: begin//確定刷屏的區域坐標，這里為全屏 if(cnt>=11)begin // cnt<=16'd0; cnt_scan<=cnt_scan+1'b1; endelsebegin data_reg<=reg_setxy[cnt]; cnt<=cnt+16'd1; num_delay<=16'd50; state<=WRITE; state_back<=SCAN; end end 3'd1: beginram_lcd_clk_en<=HIGH; ram_lcd_addr<=y_cnt; cnt_scan<=cnt_scan+1'b1; end //RAM時鐘使能 3'd2: begincnt_scan<=cnt_scan+1'b1; end //延時一個時鐘 3'd3: beginram_lcd_clk_en<=LOW; ram_data_r<=ram_lcd_data; cnt_scan<=cnt_scan+1'b1; end //讀取RAM數據，同時關閉RAM時鐘使能 3'd4: begin //每個像素點需要16bit的數據，SPI每次傳8bit，兩次分別傳送高8位和低8位 if(x_cnt>=LCD_W)begin //當一個數據(一行屏幕)寫完后， x_cnt<=8'd0; if(y_cnt>=LCD_H)beginy_cnt<=8'd0; cnt_scan<=cnt_scan+1'b1; end //如果是最后一行就跳出循環 elsebeginy_cnt<=y_cnt+1'b1; cnt_scan<=3'd1; end //否則跳轉至RAM時鐘使能，循環刷屏 endelsebegin if(high_word)data_reg<={1'b1,(ram_data_r[x_cnt]?color_t[15:8]:color_b[15:8])}; //根據相應bit的狀態判定顯示頂層色或背景色,根據high_word的狀態判定寫高8位或低8位 elsebegindata_reg<={1'b1,(ram_data_r[x_cnt]?color_t[7:0]:color_b[7:0])}; x_cnt<=x_cnt+1'b1; end //根據相應bit的狀態判定顯示頂層色或背景色,根據high_word的狀態判定寫高8位或低8位，同時指向下一個bit high_word<=~high_word; //high_word的狀態翻轉 num_delay<=16'd50; //設定延時時間 state<=WRITE; //跳轉至WRITE狀態 state_back<=SCAN; //執行完WRITE及DELAY操作后返回SCAN狀態 end end 3'd5: begincnt_scan<=1'b0; lcd_bl_out<=HIGH; state<=MAIN; end default:state<=IDLE; endcase end WRITE:begin //WRITE狀態，將數據按照SPI時序發送給屏幕 if(cnt_write>=6'd17)cnt_write<=1'b0; elsecnt_write<=cnt_write+1'b1; case(cnt_write) 6'd0: beginlcd_dc_out<=data_reg[8]; end //9位數據最高位為命令數據控制位 6'd1: beginlcd_clk_out<=LOW; lcd_data_out<=data_reg[7]; end //先發高位數據 6'd2: beginlcd_clk_out<=HIGH; end 6'd3: beginlcd_clk_out<=LOW; lcd_data_out<=data_reg[6]; end 6'd4: beginlcd_clk_out<=HIGH; end 6'd5: beginlcd_clk_out<=LOW; lcd_data_out<=data_reg[5]; end 6'd6: beginlcd_clk_out<=HIGH; end 6'd7: beginlcd_clk_out<=LOW; lcd_data_out<=data_reg[4]; end 6'd8: beginlcd_clk_out<=HIGH;e nd 6'd9: beginlcd_clk_out<=LOW; lcd_data_out<=data_reg[3]; end 6'd10: beginlcd_clk_out<=HIGH; end 6'd11: beginlcd_clk_out<=LOW; lcd_data_out<=data_reg[2]; end 6'd12: beginlcd_clk_out<=HIGH; end 6'd13: beginlcd_clk_out<=LOW; lcd_data_out<=data_reg[1]; end 6'd14: beginlcd_clk_out<=HIGH; end 6'd15: beginlcd_clk_out<=LOW; lcd_data_out<=data_reg[0]; end //后發低位數據 6'd16: beginlcd_clk_out<=HIGH; end 6'd17: beginlcd_clk_out<=LOW; state<=DELAY; end // default:state<=IDLE; endcase end DELAY:begin //延時狀態 if(cnt_delay>=num_delay)begin cnt_delay<=16'd0; state<=state_back; endelsecnt_delay<=cnt_delay+1'b1; end default:state<=IDLE; endcase end end //dataforsetxy initial //設定顯示區域指令及數據 begin reg_setxy[0] = {1'b0,8'h2a}; reg_setxy[1] = {1'b1,8'h00}; reg_setxy[2] = {1'b1,8'h00}; reg_setxy[3] = {1'b1,8'h00}; reg_setxy[4] = {1'b1,LCD_W-1}; reg_setxy[5] = {1'b0,8'h2b}; reg_setxy[6] = {1'b1,8'h00}; reg_setxy[7] = {1'b1,8'h00}; reg_setxy[8] = {1'b1,8'h00}; reg_setxy[9] = {1'b1,LCD_H-1}; reg_setxy[10] = {1'b0,8'h2c}; end //dataforinit initial //LCD初始化的命令及數據 begin reg_init[0] = {1'b0,8'h11}; reg_init[1] = {1'b0,8'hb1}; reg_init[2] = {1'b1,8'h05}; reg_init[3] = {1'b1,8'h3c}; reg_init[4] = {1'b1,8'h3c}; reg_init[5] = {1'b0,8'hb2}; reg_init[6] = {1'b1,8'h05}; reg_init[7] = {1'b1,8'h3c}; reg_init[8] = {1'b1,8'h3c}; reg_init[9] = {1'b0,8'hb3}; reg_init[10] = {1'b1,8'h05}; reg_init[11] = {1'b1,8'h3c}; reg_init[12] = {1'b1,8'h3c}; reg_init[13] = {1'b1,8'h05}; reg_init[14] = {1'b1,8'h3c}; reg_init[15] = {1'b1,8'h3c}; reg_init[16] = {1'b0,8'hb4}; reg_init[17] = {1'b1,8'h03}; reg_init[18] = {1'b0,8'hc0}; reg_init[19] = {1'b1,8'h28}; reg_init[20] = {1'b1,8'h08}; reg_init[21] = {1'b1,8'h04}; reg_init[22] = {1'b0,8'hc1}; reg_init[23] = {1'b1,8'hc0}; reg_init[24] = {1'b0,8'hc2}; reg_init[25] = {1'b1,8'h0d}; reg_init[26] = {1'b1,8'h00}; reg_init[27] = {1'b0,8'hc3}; reg_init[28] = {1'b1,8'h8d}; reg_init[29] = {1'b1,8'h2a}; reg_init[30] = {1'b0,8'hc4}; reg_init[31] = {1'b1,8'h8d}; reg_init[32] = {1'b1,8'hee}; reg_init[32] = {1'b0,8'hc5}; reg_init[33] = {1'b1,8'h1a}; reg_init[34] = {1'b0,8'h36}; reg_init[35] = {1'b1,8'hc0}; reg_init[36] = {1'b0,8'he0}; reg_init[37] = {1'b1,8'h04}; reg_init[38] = {1'b1,8'h22}; reg_init[39] = {1'b1,8'h07}; reg_init[40] = {1'b1,8'h0a}; reg_init[41] = {1'b1,8'h2e}; reg_init[42] = {1'b1,8'h30}; reg_init[43] = {1'b1,8'h25}; reg_init[44] = {1'b1,8'h2a}; reg_init[45] = {1'b1,8'h28}; reg_init[46] = {1'b1,8'h26}; reg_init[47] = {1'b1,8'h2e}; reg_init[48] = {1'b1,8'h3a}; reg_init[49] = {1'b1,8'h00}; reg_init[50] = {1'b1,8'h01}; reg_init[51] = {1'b1,8'h03}; reg_init[52] = {1'b1,8'h13}; reg_init[53] = {1'b0,8'he1}; reg_init[54] = {1'b1,8'h04}; reg_init[55] = {1'b1,8'h16}; reg_init[56] = {1'b1,8'h06}; reg_init[57] = {1'b1,8'h0d}; reg_init[58] = {1'b1,8'h2d}; reg_init[59] = {1'b1,8'h26}; reg_init[60] = {1'b1,8'h23}; reg_init[61] = {1'b1,8'h27}; reg_init[62] = {1'b1,8'h27}; reg_init[63] = {1'b1,8'h25}; reg_init[64] = {1'b1,8'h2d}; reg_init[65] = {1'b1,8'h3b}; reg_init[66] = {1'b1,8'h00}; reg_init[67] = {1'b1,8'h01}; reg_init[68] = {1'b1,8'h04}; reg_init[69] = {1'b1,8'h13}; reg_init[70] = {1'b0,8'h3a}; reg_init[71] = {1'b1,8'h05}; reg_init[72] = {1'b0,8'h29}; end endmodule
