PROSOFT MVI56-LTQ 控制系統
使用羅克韋爾自動化推薦的相同技術來拆卸和安裝ControlLogix模塊。您可以在機箱通電和系統運行時安裝或卸下ControlLogix系統組件。但是，請注意以下警告。警告：當背板電源打開時插入或卸下模塊時，可能會發生電弧。電弧可能會導致人身傷害或財產損失，原因是：向系統的執行器發送錯誤信號，導致機器意外移動或失去過程控制，導致危險環境中發生爆炸。在繼續操作之前，請確認電源已斷開或該區域無危險。反復的電弧會導致模塊及其配對連接器上的觸點過度磨損。觸點磨損可能會產生電阻，從而影響模塊的工作。1將模塊與頂部和底部導軌對齊，然后將其滑入機架，直到模塊牢固地靠在背板連接器上。·
一臺運行受支持版本的Microsoft Windows的個人計算機，帶有Microsoft Internet Explorer版本7（或更高版本）、RSLogix 5000、RSLinx和以太網端口一個帶有1756-ENBT和ILX56-MM模塊的ControlLogix處理器一個CompactLogix處理器將ControlLogix機架連接到CompackLogix機架的以太網模塊背面有一個設置跳線，標記為J1。設置跳線充當模塊固件的“寫入保護”。在“寫保護”模式下，安裝引腳未連接，模塊的固件無法覆蓋。下圖顯示了設置跳線關閉時的ILX56-MM跳線配置。如果您尚未安裝和配置ControlLogix處理器和電源，請在安裝ILX56-MM模塊之前進行安裝和配置。有關安裝說明，請參閱羅克韋爾自動化產品文檔。警告：安裝此或任何其他電子設備時，必須遵守所有安全說明。不遵守安全程序可能導致硬件或數據損壞，甚至人員重傷或死亡。在安裝或維修設備之前，請參閱計劃連接的每個設備的文檔，以驗證是否有適當?shù)陌踩绦颉z查跳線的位置后，將ILX56-MM插入ControlLogix機箱。
An electrical arc can cause personal injury or property damage by: ? sending an erroneous signal to your system’s actuators causing unintended machine motion or loss of process control ? causing an explosion in a hazardous environment Verify that power is removed or the area is non-hazardous before proceeding. Repeated electrical arcing causes excessive wear to contacts on both the module and its mating connector. Worn contacts may create electrical resistance that can affect module operation. 1 Align the module with the top and bottom guides, and then slide it into the rack until the module is firmly against the backplane connector.
Failure to follow safety procedures could result in damage to hardware or data, or even serious injury or death to personnel. Refer to the documentation for each device you plan to connect to verify that suitable safety procedures are in place before installing or servicing the device. After you have checked the placement of the jumper, insert ILX56-MM into the ControlLogix chassis. Use the same technique recommended by Rockwell Automation to remove and install ControlLogix modules. You can install or remove ControlLogix system components while chassis power is applied and the system is operating. However, please note the following warning. Warning: When you insert or remove the module while backplane power is on, an electrical arc can occur.

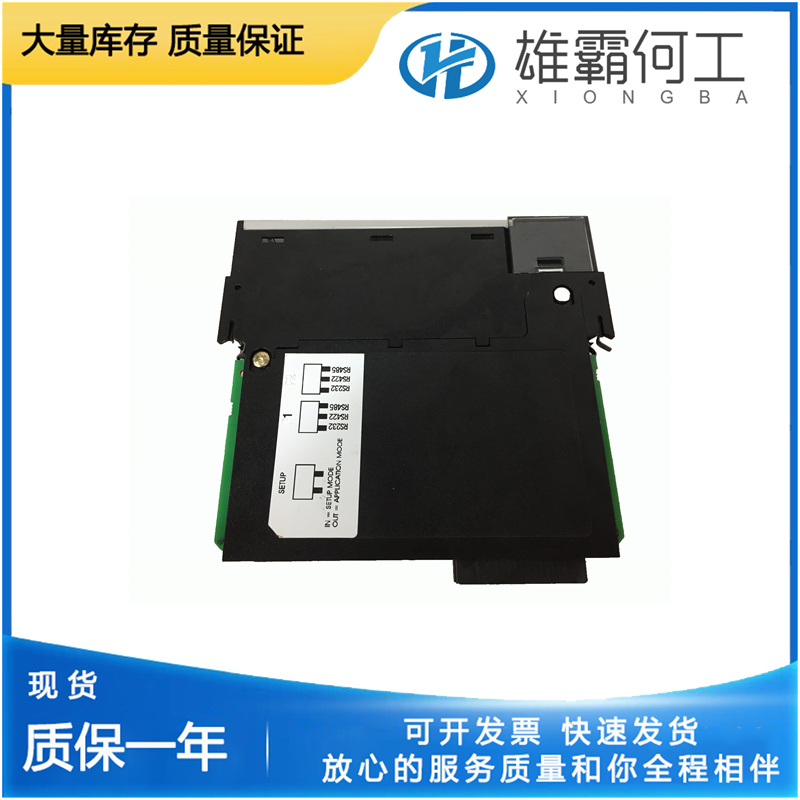

A Personal Computer running a supported version of Microsoft Windows, with Microsoft Internet Explorer version 7 (or higher), RSLogix 5000, RSLinx, and an Ethernet port ? A ControlLogix processor with 1756-ENBT and ILX56-MM modules ? A CompactLogix processor ? An Ethernet network connecting the ControlLogix rack to the CompactLogix rackThere is one Setup Jumper located on the back of the module, labeled J1. The Setup Jumper acts as "write protection" for the module's firmware. In "write protected" mode, the Setup pins are not connected, and the module's firmware cannot be overwritten. The following illustration shows the ILX56-MM jumper configuration, with the Setup Jumper OFF.If you have not already installed and configured your ControlLogix processor and power supply, please do so before installing the ILX56-MM module. Refer to your Rockwell Automation product documentation for installation instructions. Warning: You must follow all safety instructions when installing this or any other electronic devices.
