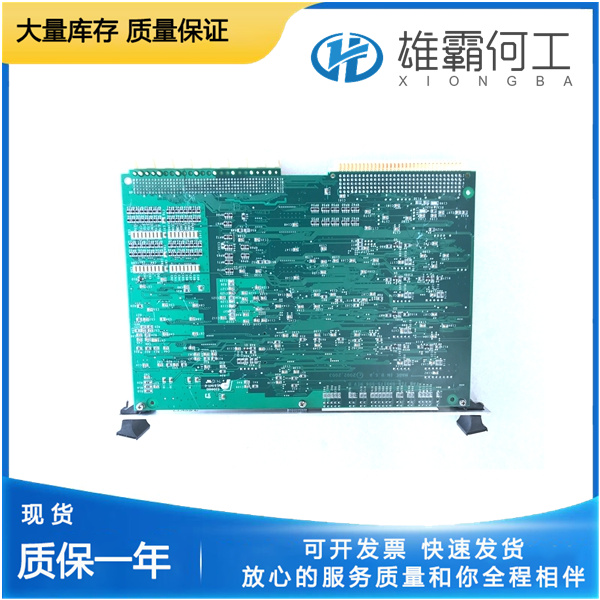

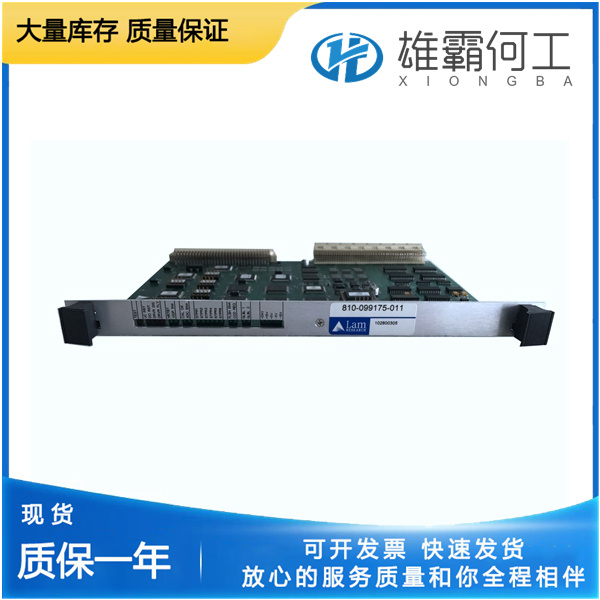

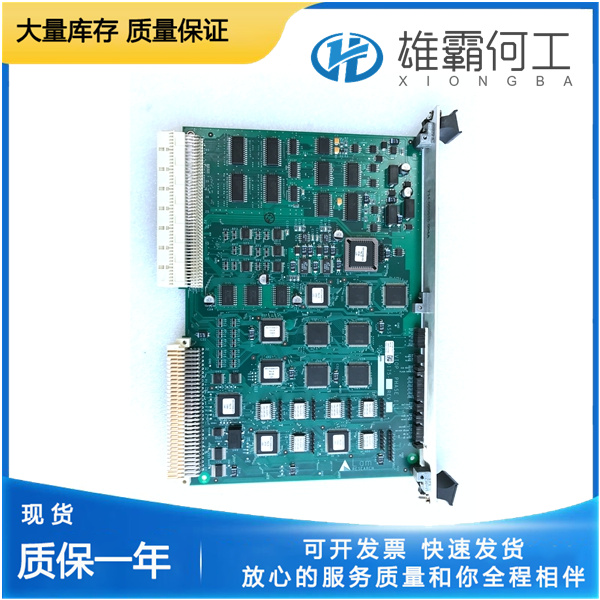

LAM 810-099175-009 電源組件
產品概述：
連桿必須在沒有摩擦和齒隙的情況下自由移動。某些燃油控制裝置在特定的燃油或齒條位置會出現問題，原因是連桿中存在猶豫或卡滯。燃油供應和噴油器狀況也可能出現類似調速器問題的問題。在火花點火發動機上，分配器、線圈、點和正時問題都可能導致操作不當，這可能類似于調速器控制故障。使用錯誤的電壓可能會損壞控制裝置。更換控制裝置時，檢查電源、電池等電壓是否正確。故障排除步驟本章是隔離系統問題的通用指南。本指南假定系統接線、焊接連接、開關和繼電器觸點以及輸入和輸出連接正確且處于良好工作狀態。按照指示的順序進行檢查。各種系統檢查都假定先前的檢查已正確完成。
引言發動機操作不當通常是調速器操作以外的因素造成的。本章提供了有關發動機問題的提示，這些問題可能類似于調速器問題。在對調速器進行任何更改之前，請確保發動機工作正常。以下故障排除指南有助于隔離控制箱、執行器、接線或其他地方的故障。只有當有完整的控制測試設施可用時，才建議進行超過該級別的故障排除。試圖通過調速器調整不及時來糾正發動機或負載問題可能會使問題變得更糟。如果可能，將調速器與發動機隔離，以確定問題是否出在調速器上，而不是發動機或發動機負載上。調速器故障通常是由執行器和發動機之間的安裝或連桿問題引起的。在對執行機構或驅動器進行任何調整之前，請仔細檢查所有接線、電源和連桿。始終像執行器在移動燃油控制連桿一樣，從一個止點到另一個止動點檢查燃油控制連桿。
Fuel supply and injector conditions can also present problems, which resemble governor problems. On spark-ignited engines, distributor, coil, points, and timing problems can all cause improper operations, which may resemble faulty governor control. The control can be damaged with the wrong voltage. When replacing a control, check the power supply, battery, etc., for the correct voltage. Troubleshooting Procedure This chapter is a general guide for isolating system problems. The guide assumes that the system wiring, soldering connections, switch and relay contacts, and input and output connections are correct and in good working order. Make the checks in the order indicated. Various system checks assume that the prior checks have been properly done.
If possible, isolate the governor from the engine to determine if the problem is with the governor and not with the engine or the load on the engine. Governor faults are usually caused by problems in the installation or the linkage between the actuator and the engine. Carefully review all the wiring connections, the power supply, and the linkage before making any adjustments to the actuator or driver. Always check the fuelcontrol linkage from stop to stop as if the actuator were moving it. The linkage must move freely without friction and without backlash. Some fuel controls will present problems at particular fuel or rack positions because of a hesitation or binding in the linkage.
Introduction Improper engine operation is often the result of factors other than governor operation. This chapter gives tips about engine problems, which can resemble governor problems. Make sure the engine is operating correctly before making any changes in the governor. The following troubleshooting guide is an aid in isolating trouble to the control box, actuator, wiring, or elsewhere. Troubleshooting beyond this level is recommended ONLY when a complete facility for control testing is available. Attempting to correct engine or load problems with untimely governor adjustment can make problems worse.
