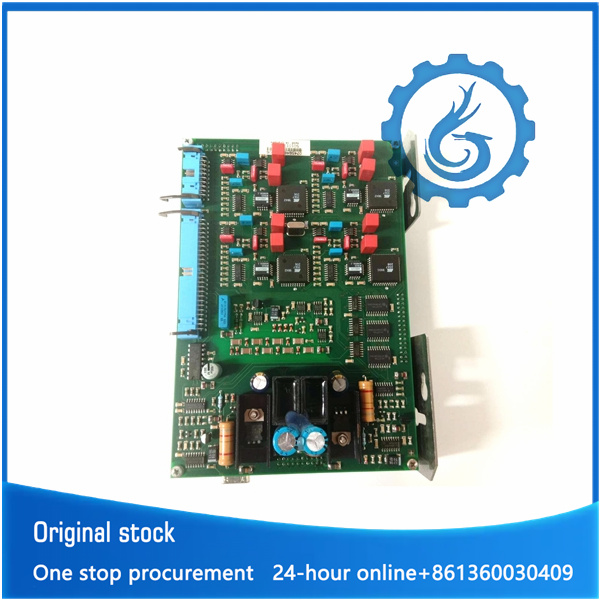

LAM 810-017015-001 電源組件
產品概述：
810-017015-001濾波器默認值=810-017015-001輸入上的0.01（0到1）滯后τ濾波器調整。停止——最小停止偏移（度）默認值=0.5度（-10到10）旋轉角度的電氣停止調整。這是在最小輸出位置時額外“偏置”的執行器范圍調整設置。該值使總體0%的需求位置存在偏差。810-017015-001當為正時，此設置可通過有效地將最小止動位置移動到離機械止動器更遠的位置（另請參閱“維修硬件調整”選項卡頁上的“電流限制-最小止動”），幫助防止ProAct控件的當前驅動器在達到止動器時將執行器驅動到硬止動器（機械限制）。810-017015-001將此參數設置為負值將迫使輸出電流更難驅動至機械止動器，以確保閥門關閉。另請參閱維修模式中的調整用戶停止部分。
停止——最大停止偏移（度）默認值=0.5度（-10到10）旋轉角度的電氣停止調整。810-017015-001這是在最大輸出位置時用于額外“偏置”的致動器范圍調整設置。該值會使整個100%的需求位置產生偏差。當為正時，此設置可以通過有效地將最小停止位置從機械停止位置進一步移動（另請參閱“維修硬件調整”選項卡頁上的“電流限制-最大停止”），幫助防止ProAct控件的當前驅動器在到達停止位置時將執行器驅動到硬停止位置（機械限制）。810-017015-001將此參數設置為負值將迫使輸出電流更難驅動至機械止動器，810-017015-001以確保閥門打開。另請參閱維修模式中的調整用戶停止部分。
Actuator Inertia Setting dflt =0 (range 0–25) Actuator/valve inertia setting. This setting is available for systems with higher or lower inertia than the default as indicated by excessive shaft movement.810-017015-001 A zero (0) setting is basically for an unconnected shaft, whereas,810-017015-001 increasing the setting implies a higher inertia in the system. Refer to Table 9-1 for an approximate Inertia Setting value based on lever size. High Friction System dflt =false (false, true) Internal Disturbance Observer Controller (dobs) Enable command. Normally set to false,810-017015-001 only needed in high friction systems. As a general rule-of-thumb,810-017015-001 when more than 2 A of current are required to move the actuator then a true setting will help with controllability.
AnalogIn 20 Fail Min (mA) dflt = –1 mA (–1 to 12.5) Value at which the analog input will be determined as failed, for the 20 mA analog input range.810-017015-001 A failure is determined if the input is below the ‘Fail Min’ milliamp level for the ‘AnalogIn Fail Delay’ time. A value of ‘–1’ disables the minimum current failure. AnalogIn 20 Fail Max (mA) dflt = 26 mA (12.5 to 26) Value at which the analog input will be determined as failed, for the 20 mA analog input range. A failure is determined if the input is above the ‘Fail Max’ milliamp level for the ‘AnalogIn Fail Delay’ time.810-017015-001 AnalogIn 200 Fail Min (mA) dflt = –5 mA (–5.0 to 100) Value at which the analog input will be determined as failed, for the 200 mA analog input range. A failure is determined if the input is below the ‘Fail Min’ milliamp level for the ‘AnalogIn Fail Delay’ time.810-017015-001 A value of ‘–5’ disables the minimum current failure.
Position Error Max (%) default = 10 % ( 1.0 to 110) This setting is the maximum difference between the position demand and the actual position in percentage before a position error alarm will be issued. The difference must exceed the ‘Error’ percentage value for the ‘Error Delay’ duration to generate an alarm.810-017015-001 Note that there is some filtering done internally to model the expected actuator response and minimize nuisance alarms. This setting applies to any Demand source, primary or backup. Note: The position demand is limited internally between 0 and 100, for position error detection only, to eliminate false position error alarms. Position Error Delay (sec) default = 1 sec ( 0.1 to 10) Position error delay in seconds—see Position Error Max. PwmIn Fail Min Freq (%) default= 85 % of nominal freq (50 to 99) Value at which the PWM input will be determined as failed810-017015-001 The setting is expressed as a percentage of the nominal frequency set in the Configure Mode (i.e. 85 % of a nominal of 1000 Hz would equate to a fail level of 850 Hz).810-017015-001 A failure is determined if the PWM input frequency is below the ‘Fail Min’ hertz level for the ‘PwmIn Fail Delay’ time. PwmIn Fail Max Freq (%) default= 115 % of nominal freq (101 to 150) Value at which the PWM input will be determined as failed. The setting is expressed as a percentage of the nominal frequency set in the Configure Mode.
