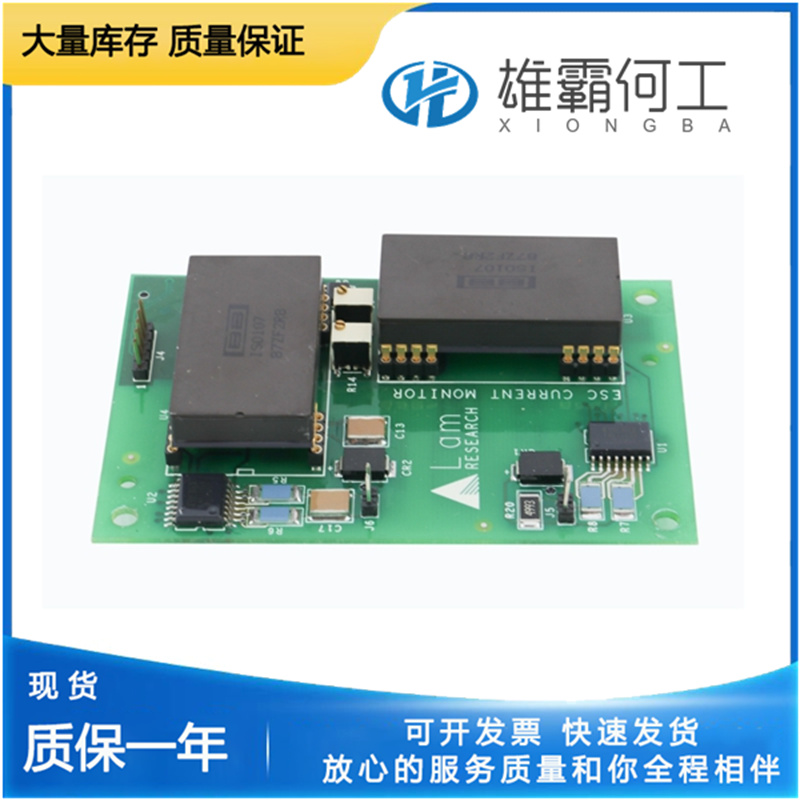

LAM 810-000839-003 電路板模塊
產品概述：
810-000839-003In 200 Fail Max（mA）dflt=250 mA（100至250）對于200 mA模擬輸入范圍，模擬輸入將被確定為失敗的值。如果輸入在“Analog In Fail Delay”（模擬輸入失敗延遲）時間內高于“810-000839-003”毫安級，則確定為失敗。模擬輸入故障延遲（秒）默認值=0.1秒（0.01到10）模擬輸入故障延時（秒）。模擬輸入濾波器默認值=模擬輸入上的0.01（0.0到1.0）滯后τ濾波器調整。模擬輸出偏移（mA）默認值=0 mA（-2至24）模擬輸出電流上的偏移調整，單位為毫安。AnalogOut增益默認值=1（-1.0到1.5）810-000839-003模擬輸出電流的增益調整。增益基于實際位置，在0%時，增益調整沒有效果。輸出單位為毫安=（實際位置單位為%+4mA）（增益）+偏移。注：如果需要，可以通過將增益設置為-1并將偏移設置為24來反轉模擬輸出（20-4 mA）。CanIn Fail Min（msg/s）default=30（10到100）CAN請求輸入的故障調整。810-000839-003此設置是ProAct在發出故障之前每秒接收的最小消息數。
analog In 20 Fail Min（mA）dflt=–1 mA（-1至12.5）對于20 mA模擬輸入范圍，模擬輸入將被確定為失敗的值。如果輸入在“模擬輸入失敗延遲”時間內低于“失敗最小”毫安水平810-000839-003，則確定為失敗。值“–1”將禁用最小電流故障。810-000839-003analog In 20 Fail Max（mA）dflt=26 mA（12.5至26）對于20 mA模擬輸入范圍，模擬輸入將被確定為失敗的值。如果輸入在“Analog In Fail Delay”（模擬輸入失敗延遲）時間內高于“Fail Max”毫安級，則確定為失敗。analog In 200 Fail Min（mA）dflt=–5 mA（–5.0到100）對于200 mA模擬輸入范圍，810-000839-003輸入將被確定為失敗的值。如果輸入在“模擬輸入失敗延遲”時間內低于“失敗最小”毫安水平，則確定為失敗。值“-5”將禁用最小電流故障。
The ‘Exit’810-000839-003 parameter automatically returns to false when the exit is completed. Auto Execute dflt = false (momentary true command only) Command to Execute the Automatic ‘stop finder’ procedure. When set to true, the output moves to both minimum and maximum positions and determines the stops automatically. The Status string indications the present execution step. 810-000839-003The command is automatically set back to false when the stops are set.
Mode Password dflt =0 Password input command for the Adjust User Stops mode. To enter a value, highlight or delete the default value (‘0’) and use the keypad to enter the numeric password. The input is accepted when the enter key is pressed or the equals sign to the right of the input is selected. When entered, the password returns to zero. If accepted and the unit is shut down, the ‘Enabled’ indication will be true. Refer to the Appendix for Service Tool passwords. 810-000839-003Mode Enabled (status indication only) Adjust User Stops Mode Enabled Indication (true/false). Parameter is true when the mode is enabled—this indicates Adjust User Stops mode parameters can be changed. When false, parameters can only be viewed—not adjusted. Mode Exit dflt = false (momentary true command only) Exit command.810-000839-003 Set to true to exit the Adjust User Stops mode. This disables the ability to make changes to parameters in this mode.
When calibration is complete, set the Mode Exit to true to return to the previous (Shutdown) mode. Service: Adjust User Stops (must be shut down and password entered)810-000839-003 This category provides the access to change parameters in the Adjust User Stops Mode. Refer to Figure 9-6. 810-000839-003It provides both automatic and manual means of setting the stops, inertia setting and testing capability,810-000839-003 and exit command, gives mode status, and identifies an errors made in configuration.
