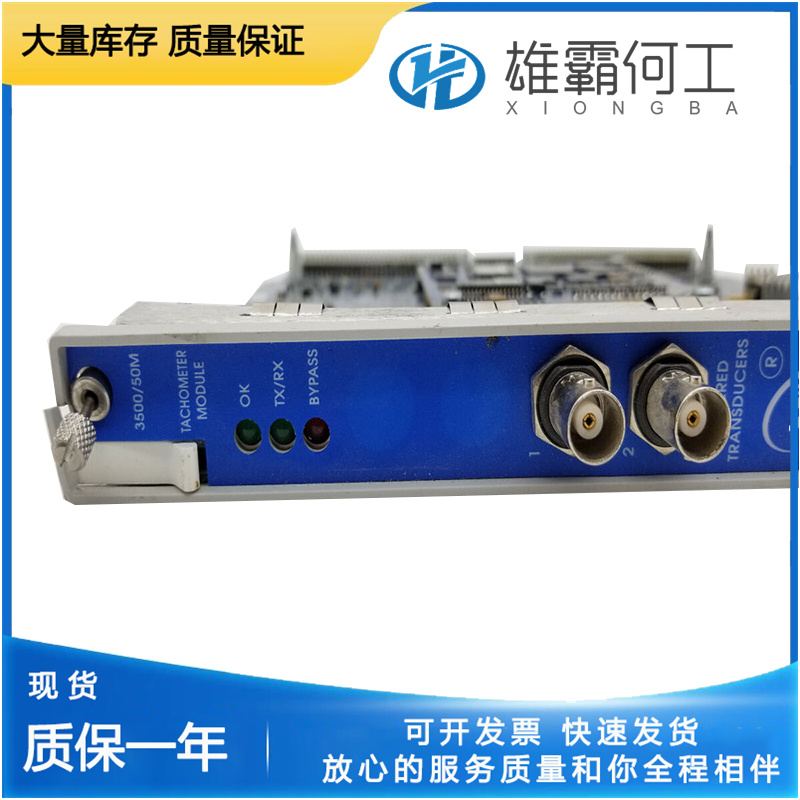

BENTLY 3500/50M 框架系統轉速 模塊
BENTLY 3500/50M前置器地震監測器：通過持續比較監測參數與配置報警來保護機械
驅動警報的設定點。
1.向雙方傳達基本機器信息
2.操作和維護人員。
3500/42M前置器地震監測器是一個四通道監測器，可接受來自接近傳感器和地震傳感器的輸入。它調節信號以提供振動和位置測量，并將調節后的信號與用戶可編程的警報進行比較.根據配置，每個通道通常會調節其輸入信號，以生成各種稱為靜態值的參數。您可以為每個活動靜態值配置警報設定點，并為任意兩個活動靜態值設置危險設定點。
BENTLY 3500/50M 框架系統轉速 模塊
BENTLY 3500/50M 框架系統轉速 模塊
使用機架配置軟件為監測器測量的每個值設置警報級別，并為BENTLY 3500/50M測量到的任何兩個值設置危險設定點。每個測量值的報警范圍為滿量程的0到100%。然而，當滿標度范圍超過傳感器的范圍時，傳感器的范圍將限制設定點。
該設備符合FCC規則第15部分。操作受
以下兩個條件：
1.本設備不會造成有害干擾。
2.本設備必須接受接收到的任何干擾，包括可能導致
不希望的操作。
EMC歐洲共同體指令：EMC指令2014/30/EU
標準：EN 61000-6-2抗擾度
工業環境：EN 61000-6-4工業環境排放
BENTLY 3500/50M 框架系統轉速 模塊
BENTLY 3500/50M 框架系統轉速 模塊
The BENTLY 3500/50M Proximitor Seismic Monitor: l Protects machinery by continuously comparing monitored parameters against configured alarm setpoints to drive alarms. l Communicates essential machine information to both operations and maintenance personnel. The BENTLY 3500/50M Proximitor Seismic Monitor is a four-channel monitor that accepts input from proximity and seismic transducers. It conditions the signal to provide vibration and position measurements and compares the conditioned signals with user-programmable alarms.The monitor channels are programmed in pairs and can perform up to two of the listed functions at a time. For example, Channels 1 and 2 can perform one function while channels 3 and 4 perform another or the same function.Each channel, depending on configuration, typically conditions its input signal to generate various parameters called static values. You can configure alert setpoints for each active static value and danger setpoints for any two of the active static values.Indicates when the 3500/42M Proximitor Seismic Monitor is operating properly.If a multi-event gear or speed wheel generates the speed input, the upper limitation of the resultant input signal is approximately 20 KHz.
BENTLY 3500/50M 框架系統轉速 模塊
Use Rack Configuration Software to set alert levels for each value measured by the monitor and danger setpoints for any two of the values measured by the monitor. Alarms are adjustable from 0 to 100% of full-scale for each measured value. However, when the full-scale range exceeds the range of the transducer, the range of the transducer will limit the setpoint.
