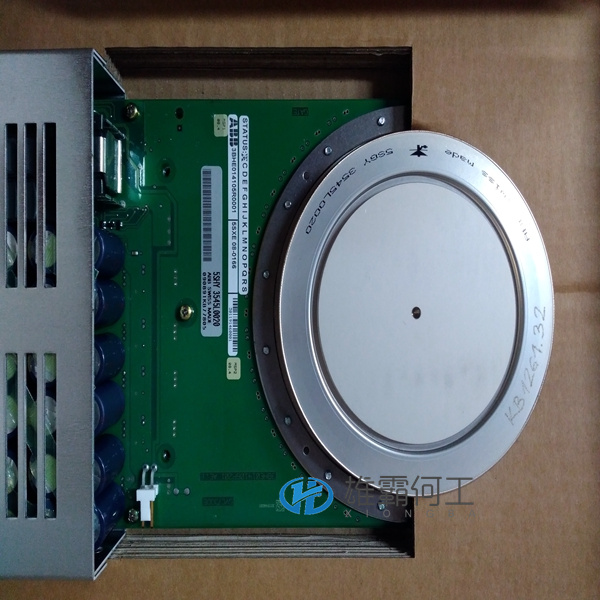

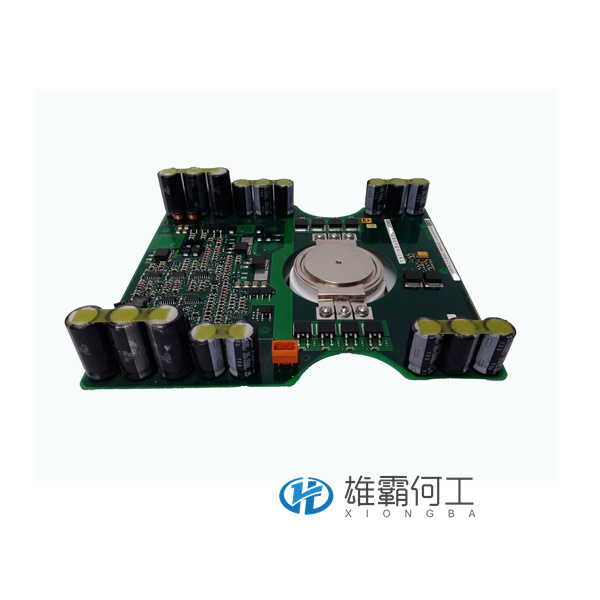

ABB 5SHX08F4502 3BHB003387R0101 5SXE05-0151 GVC703AE01
s電阻制動電路故障導致電機快速減速。還可能導致變頻器故障跳閘。如果斬波器控制板（NBRC）檢測到故障，制動斬波器斷開中間電路的制動電阻，并釋放繼電器輸出的轉換開關。繼電器輸出指示以下故障：制動電阻或電阻電纜短路，制動斬波器（IGBT）短路、斬波器控制板故障，斬波器啟用輸入信號關閉。請注意，斬波器將無法關閉短路電流。如果繼電器輸出按照第4章-電氣安裝中的建議使用，則ACS 600的主接觸器將在出現(xiàn)故障時打開。

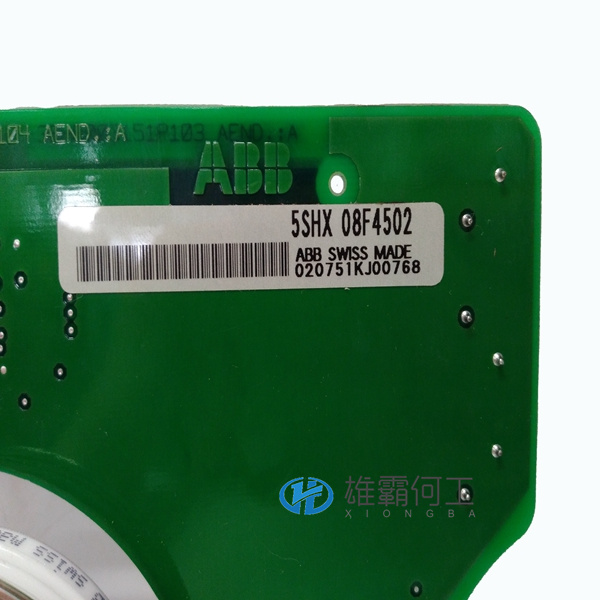

ABB 5SHX08F4502 3BHB003387R0101
ABB 5SHX08F4502 3BHB003387R0101
